HW系列
    发布时间: 2016-06-17 14:47
安全光幕 光栅,安装方便、操作简单、运行可靠稳定。
HW系列

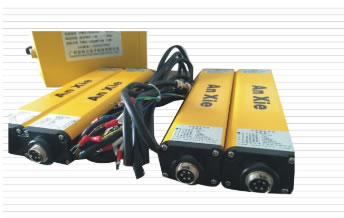

HW系列光电保护装置(双面控制)
特点:安装调试方便,配线简单,结构小巧,外形美观控制器:

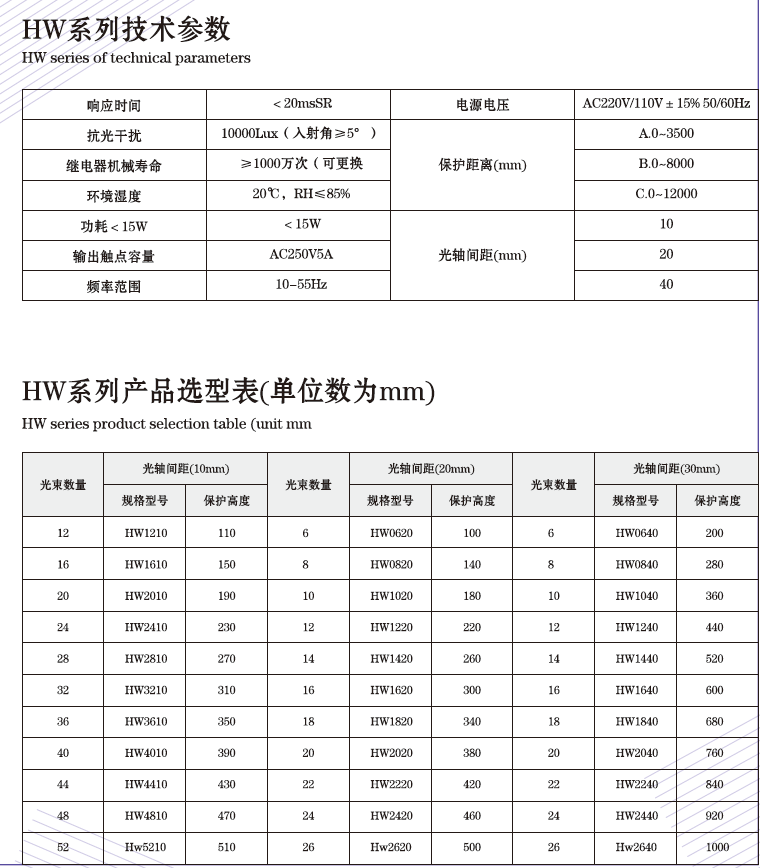

光幕形式:对射式
光轴间距:10mm20mm40mm
检测精度:20mm30mm50mm
保护长度:A系列0-3000mm;B系列0-8000mm;C系列0-12000mm;
保护高度:1101200mm为常规产品
标准配置:发光器/2支,受光器/2支,P型控制器/1只,信号电缆 A系列 /2.5m,5m各两根; B系列/ 3m 6m各两根;
可提供PNP输出,此时应保证后续控制电路符合安全要求,并提供DC24V电源,
控制器:P型,外置式,双面控制,工作电源为AC220V/110V(开关转换)或DC24配备控制电缆标准长度2.5m
特别提示:
如果需要使用DC24V作为工作电源,订货时需特别说明;
如果信号电缆、控制电缆需加长,订货时需特别说明;
HW series photoelectric protection device (dual control)
Features: convenient installation, wiring is simple, compact structure, beautiful shape controller:
Screen: on the radio
The optical axis spacing: 10mm, 20mm, 40mm,
Accuracy: 20mm, 30mm, 50mm,
The protection length: A series 0-3000mm series C series 0-8000mm; B; 0-12000mm;
Protection height: 110 ~ 1200mm for conventional products
Standard configuration: /2 light emitting device, light receiving device /2, P type of /1 controller, signal cable Aseries /2.5m, 5m two; B / 3M and 6m;
Can provide PNP output, at this time should be to ensure follow-up control circuit to meet the safety requirements,and to provide DC24V power supply,
Controller: P, external type, double control, power supply for AC220V/110V (switch) or DC24 is equipped with acontrol cable length 2.5m
Special tips:
If you need to use the DC24V as a working power supply, please specify;
If the signal cable, control cable should be increased, particularly when ordering;
